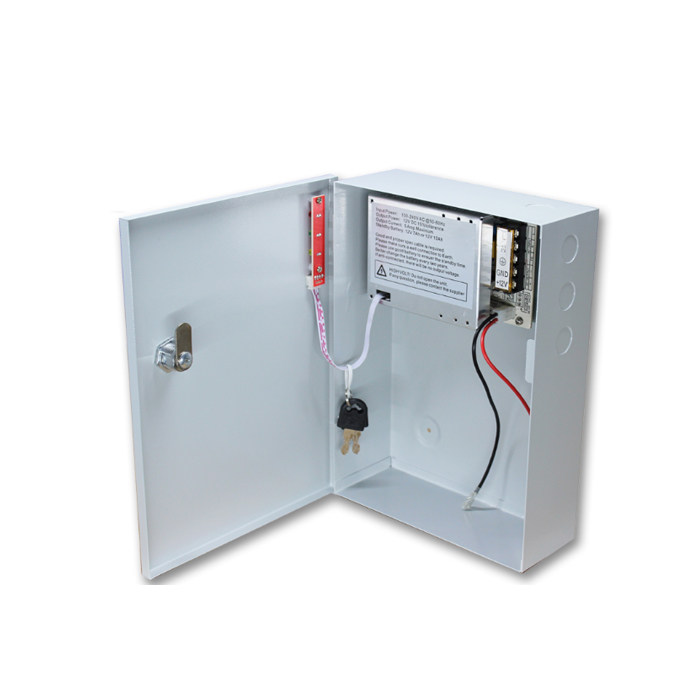

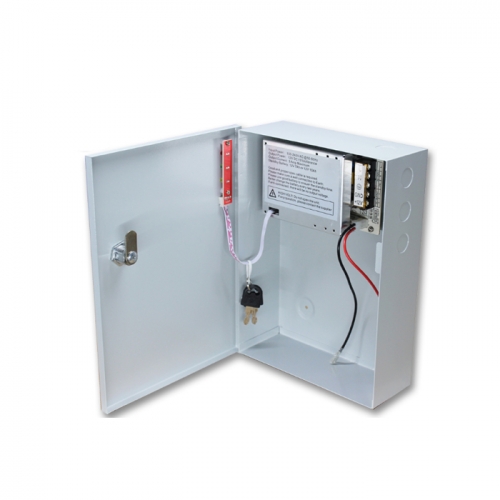

SPS-02 Power Supply Support Backup Battery For Access Control, Lock, Door Video Phone System
INQUIRY
Description
Uninterruptible power supply
Applicable to all types of access control systems, building interphone systems, alarm monitoring systems Power protection---Output over-voltage protection, over-current protection, short-circuit protection
Battery over-charging protection, over-discharging protection, anode & cathode wrong connect protection
AC failure & Battery low-voltage situation indicated by relay output
• Input: 190-240V AC
• Frequency: 50-60Hz
• Output voltage: DC 12V
• Output Current: 3A
• Over-current Protection: 3.6A
• Ripple & Noise less than 100mV
• Efficiency higher than 85%
• Charge Voltage: 13.5V
• Charge Current (Max. ): 1AMP
• Battery Under-voltage Protection: 10V
• Weight 1.2kg
• Dimensions:L203*W163*H74mm
